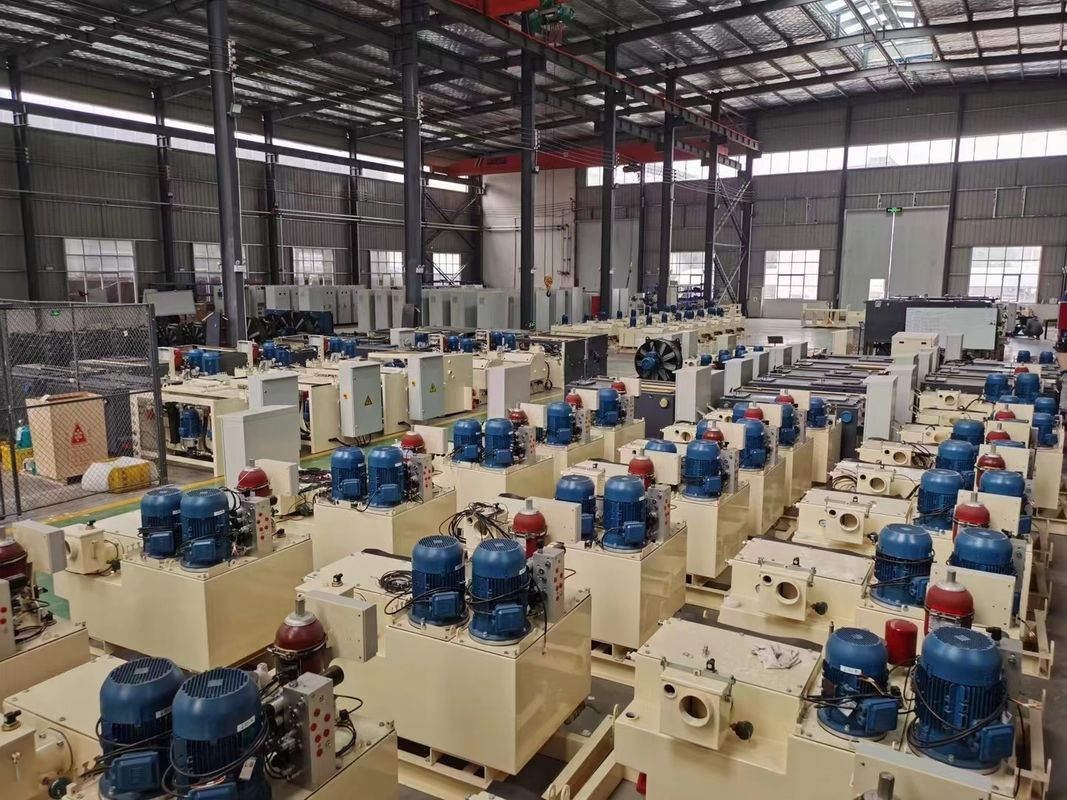

Multi Cylinder Hydraulic Station High Power Electric Motor Hydraulic System

Product Introduction: Multi-Cylinder Hydraulic Station

A Multi-Cylinder Hydraulic Station is a high-performance hydraulic power system designed to drive and synchronize multiple hydraulic cylinders simultaneously. It combines advanced hydraulic components, including pumps, valves, actuators, and a centralized control unit, to deliver precise force, motion, and pressure across complex industrial operations. This system is ideal for applications requiring coordinated multi-axis movement, heavy-load handling, or synchronized workflows, such as large-scale manufacturing, construction machinery, and automated production lines.

Key Components:

1. Multiple Hydraulic Cylinders: Enable synchronized linear motion and force distribution.

2. High-Power Electric Motor: Drives the hydraulic pump to generate consistent fluid pressure.

3. Hydraulic Pump System: Delivers adjustable flow rates to meet multi-cylinder demands.

4. Control Valves & Manifolds: Precisely regulate pressure, direction, and flow for each cylinder.

5. Centralized Control Unit (PLC/HMI): Ensures synchronization and programmable automation.

6. Oil Reservoir & Cooling System: Maintains optimal fluid temperature and cleanliness.

7. Safety Mechanisms: Includes pressure relief valves, emergency stops, and fault detection.

Advantages of Multi-Cylinder Hydraulic Stations

1. Synchronized Performance

   • Advanced control systems ensure precise coordination between multiple cylinders.

   • Ideal for applications requiring balanced force distribution (e.g., lifting platforms, robotic arms).

2. High Load Capacity

   • Capable of handling heavy-duty tasks through combined force output of multiple cylinders.

   • Suitable for industries like mining, shipbuilding, and aerospace.

3. Flexibility & Scalability

   • Modular design allows customization of cylinder numbers and configurations.

   • Adaptable to diverse operational needs (e.g., varying stroke lengths, force requirements).

4. Energy Efficiency

   • Variable displacement pumps and load-sensing technology reduce energy consumption.

   • Optimized hydraulic circuits minimize heat generation and fluid waste.

5. Precision & Stability

   • Closed-loop feedback systems ensure real-time adjustments for accuracy.

   • Stable pressure control prevents jitter or lag in critical operations.

6. Durability & Robustness

   • Reinforced components (e.g., hardened piston rods, anti-wear valves) withstand harsh environments.

   • Corrosion-resistant materials extend equipment lifespan.

7. Ease of Maintenance

   • Centralized monitoring via HMI simplifies diagnostics and troubleshooting.

   • Quick-disconnect fittings and standardized parts reduce downtime.

8. Safety & Compliance

   • Integrated safety protocols (ISO 13849, CE) protect operators and equipment.

   • Redundant systems ensure fail-safe operation in critical scenarios.

Typical Applications

• Heavy Machinery: Excavators, cranes, and hydraulic presses.

• Manufacturing: Automated assembly lines, stamping machines, injection molding.

• Energy Sector: Wind turbine adjustment systems, oil rig actuators.

• Transportation: Vehicle lifting platforms, railway maintenance equipment.

• Aerospace: Landing gear testing rigs, component assembly systems.

Technical Specifications (Example)

• Max Working Pressure: 15–35 MPa (customizable)

• Flow Rate: 20–200 L/min (multi-pump configurations available)

• Motor Power: 5–75 kW (scalable based on cylinder count)

• Oil Capacity: 50–500 liters (with optional cooling/filtration)

• Control Options: PLC automation, touchscreen HMI, IoT connectivity.

• Cylinder Configuration: 2–12 cylinders (customizable stroke, bore size).

Why Choose Our Multi-Cylinder Hydraulic Station?

• Engineering Expertise: Tailored solutions for complex industrial challenges.

• Global Standards: Compliant with ISO, CE, and industry-specific certifications.

• Lifetime Support: 24/7 technical service, training, and spare parts supply.
