Conical Self Aligning Roller For Belt Conveyor Tracking In Mining Cement

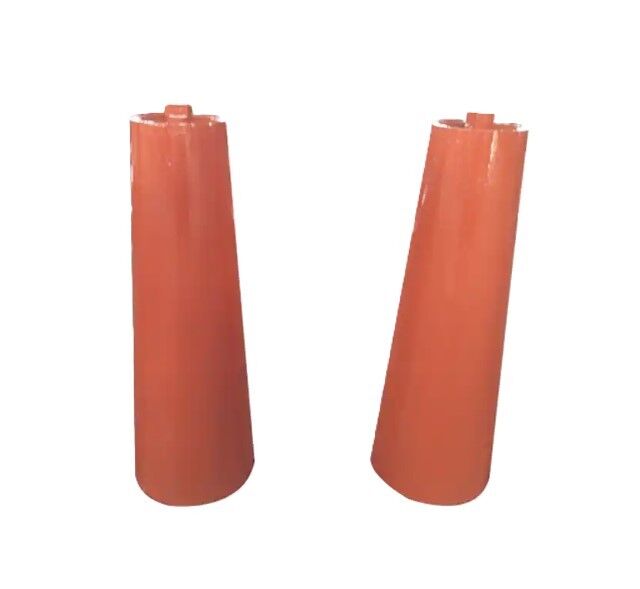

Conical Self Aligning Idler Roller for Conveyor Belt Tracking in Mining Cement

The Conical Self Aligning Idler Roller is a key component for maintaining proper belt alignment in conveyor systems. Designed with tapered rollers mounted on pivoting frames, it self-corrects belt deviation using mechanical feedback — eliminating manual adjustments and minimizing downtime.

Widely used in mining, cement, quarrying, power plants, and bulk material ports, this idler roller increases system stability and reduces belt damage caused by misalignment.

Working Principle

When a conveyor belt strays from its path, the narrower end of the conical roller engages the belt first. This creates a difference in surface velocity across the roller, generating a lateral force that causes the roller assembly to pivot and steer the belt back to its central position, automatically realigning the belt without operator input.

Application Fields

• Mining and Quarrying Operations

• Cement and Aggregate Production

• Thermal Power Plants

• Grain and Agricultural Terminals

• Chemical and Fertilizer Facilities

• Port and Terminal Bulk Conveyors

Main Benefits

• Automatic Alignment: Self-centering mechanism reduces tracking issues and downtime.

• Protects Belt Edges: Prevents lateral drift and friction damage.

• Durable Performance: Resistant to harsh, dusty, or corrosive environments.

• Low Maintenance: Simple design, no frequent manual adjustments required.

• High Compatibility: Suitable for TD75, DTII, and DTII(A) belt systems.

Technical Specifications
