Industrial Solid Liquid Separator Machine High Efficiency Disc Filter

Brand Name:	XINGHEYONGCHEN
MOQ:	1 set
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	500sets Per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan, China

Certification:

ISO 9001:2015

Product Name:

Disc Filter

Warrany:

1 Year

Filtration Area ㎡:

10-96

Diameter Of The Disk:

2100-3100

Max.degree Of Vacuum:

2-8

Filter Shaft Motor:

Main Shaft Motor:

4-7.5

Agitation Motor:

5.5-7.5

Packaging Details:

Standard Package

Highlight:

Industrial Solid Liquid Separator Machine

Industrial Solid Liquid Separation Machine

High Efficiency Disc Filter

Product Description

Disc Filter Advanced Solution Industrial High-Efficiency Solid-Liquid Separator

Overview

A high-efficiency solid-liquid separation device using rotating discs with filter cloth to dewater concentrates, tailings, or industrial slurries. Widely used in mining, metallurgy, and chemical industries. Our disc filter utilizes rotating vertical discs with filter cloths to achieve continuous solid-liquid separation. Ideal for metallic/non-metallic concentrates, tailings, and coal slurry dewatering.

Advantages

Small occupied area ,low power consumption

High vacuum degree, low concentration of filtrate and high filter efficieny

Can be recycled to use, reduce the emission

Easy installation and maintenance

Highly atumatic, reduce labor cost

Reliable structure and long lifepan

Technical Specifications

Disc type vacuum filter
model	filter area(m²)	Disc diameter(mm)	filter plate number	Number of each filter plate of fan	Motor power		weight (T)
model	filter area(m²)	Disc diameter(mm)	filter plate number	Number of each filter plate of fan	spindle motor	Mixing motor	weight (T)
GPT10-2	10	2100	2	20	4	5.5	10.4
GPT15-3	15	2100	3	20	4	5.5	11
GPT20-4	20	2100	4	20	4	5.5	11.6
GPT25-5	25	2100	5	20	4	5.5	12.2
GPT30-6	30	2100	6	20	4	5.5	12.8
GPT35-7	35	2100	7	20	4	5.5	13.4
GPT40-8	40	2100	8	20	4	5.5	14
GPT48-4	48	3100	4	20	5.5	7.5	18
GPT60-5	60	3100	5	20	5.5	7.5	21
GPT72-6	72	3100	6	20	7.5	7.5	24
GPT84-7	84	3100	7	20	7.5	7.5	27
GPT96-8	96	3100	8	20	7.5	7.5	30

Applications

Industries Served:

Mining: Iron/copper concentrate dewatering
Coal Preparation: Fine coal recovery
Chemical: Gypsum/phosphoric acid filtration

Factory Display

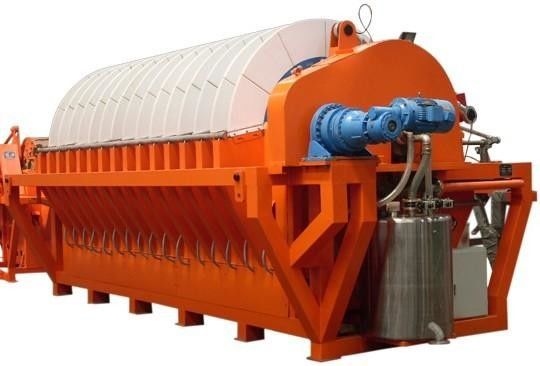

Industrial Solid Liquid Separator Machine High Efficiency Disc Filter 0

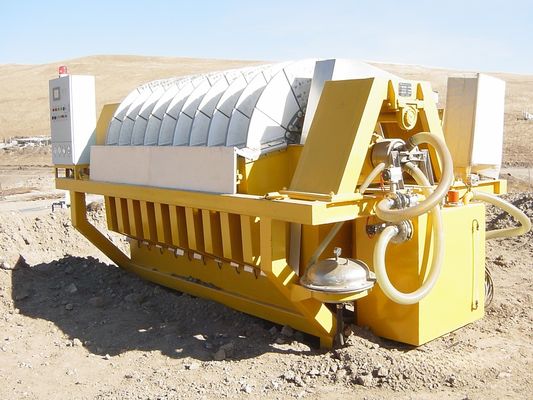

Industrial Solid Liquid Separator Machine High Efficiency Disc Filter 1

Industrial Solid Liquid Separator Machine High Efficiency Disc Filter 2

Industrial Solid Liquid Separator Machine High Efficiency Disc Filter 3

FAQ

Q: What’s the minimum particle size for effective filtration?
A: 10–200 microns (optimized with flocculants).

Q: Can it handle abrasive slurries?
A: Yes, with ceramic-coated discs (optional).
