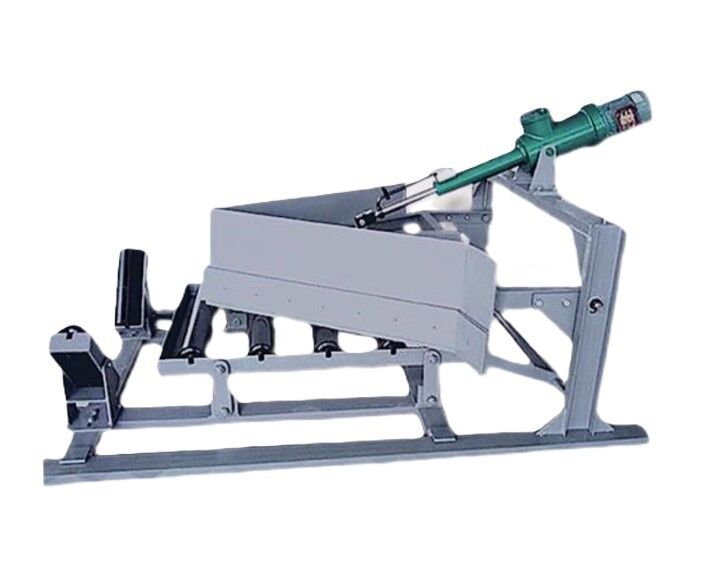

Electro Hydraulic Plough Unloader Belt Conveyor Accessories Diverter Bulk Material Handling

Electro Hydraulic Plough Unloader Conveyor Diverter For Belt Bulk Material Handling

This electro-hydraulic plough unloader provides fast and accurate bulk material discharge at any point along a conveyor system without stopping operation. Designed for mining ports, power, and grain systems, it uses a hydraulic push rod to raise and lower the plough blade with precision and speed.

Main Components

1. Main plough made of high strength manganese steel

2. Secondary plough made of polyurethane for belt protection

3. Electrohydraulic push rod for stable lifting

4. Hydraulic station controls plough motion

5. Optional control box for remote or automatic operation

6. Floating frame adjusts to belt vibration

7. Wear resistant base plate for belt surface protection

Advantages

1. Discharges materials without stopping the belt

2. Protects the belt with polyurethane contact surface

3. Explosion proof and dust resistant models available

4. Compact hydraulic system for easy installation

5. Fast actuation within 6 to 9 seconds

6. Supports dual or single side discharge

7. Customizable for belt width and material type

8. Long service life with low maintenance needs

Applications

1. Mining plants for unloading coal ore and gravel.

2. Thermal power stations for selective coal discharge

3. Chemical industries handling powders and granules.

4. Cement plants for gypsum and limestone redirection.

5. Ports and terminals for mineral and grain silo loading

6. Grain processing centers for soybean, wheat, and corn.

7. Tunneling systems for transferring spoil to belts or trucks.
