Ore Grading Machine Particle Size Separator Mineral Spiral Classifier

Place of Origin	Sichuan, China
Brand Name	XINGHEYONGCHEN
Certification	ISO 9001:2015

Product Details

Product Name:

High Weir Spiral Classifier

Warranty:

1 Year

Core Components:

Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Other

Key Selling Points:

Easy To Operate

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Application:

Gold Ore Mining

Advantage:

Long Working Life

Highlight:

Ore Particle Size Separator

Mineral Particle Size Separator

Mineral Spiral Classifier

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Packaging Details

Standard Package

Delivery Time

45-60 Days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

500sets Per Year

Product Description

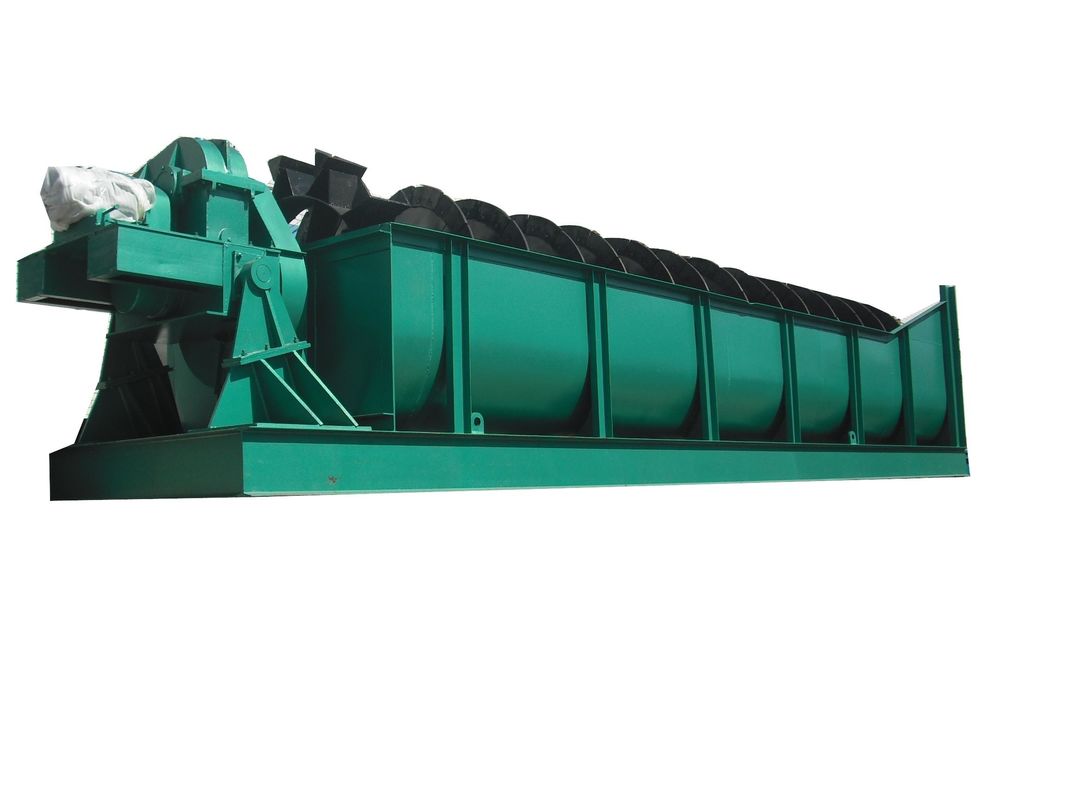

Mineral Classifier Ore Grading Machine Particle Size Separator Spiral Classifier

Product Overview

Description:

The single spiral classifier is an up-dated one which is formed by gearing, spiral, cell body and lifting device etc. It increases an automatic sand-return device at the sand-return part. Lift ore sand that discharged at tank bottom to a proper position at tank wall, to adapt the configuration of ball mill cancelled big spoon head.

Application

Grinding auxiliary equipment for classification and grading inspection in advance, also used to contain clay minerals for washing and desliming, dehydration of pulp.

Advantages


1. Good adaptability
2. Easy maintenance
3. High classifier efficiency
4. Simple and reliable structure
5. High classifier production
6. easy to operate
Technical Specifications

			High weir spiral classifier

			Type

			Model

			Specification

			spiral diameter(mm)

			Spiral speed(r/min)

			Flume

			Production capacity(t/24h)

			drive motor power(kw)

			lifting motor power(kw)

			length(mm)

			width(mm)

			obliquity(°)

			overflow Volume

			Sand return Volume

			single-screw

			FG-5

			Φ500

			500

			9.2

			3900

			560

			10.5°-14°

			21-75

			145-260

			3

			FG-7

			Φ750

			750

			7.8

			5367

			830

			10.5°-14°

			65-154

			255-564

			3

			FG-10

			Φ1000

			1000

			7

			6500

			1110

			10.5°-14°

			85

			473-1026

			5.5

			FG-12

			Φ1200

			1200

			5,6,7

			6500

			1372

			10.5°-14°

			150

			1145-1600

			5.5

			2.2

			FG-15

			Φ1500

			1500

			2.5,4,6

			8265

			1664

			14°-18.5°

			235

			1140-2740

			7.5

			2.2

			FG-20

			Φ2000

			2000

			5.4

			8400

			2396

			14.5°-18.5°

			400

			5940

			15

			2.2

			FG-24

			Φ2400

			2400

			3.6,5.4,6.3

			9160

			2600

			14°-18.5°

			580

			6800

			11/15

			2.2

			FG-30

			Φ3000

			3000

			3.17

			12500

			3200

			14°-18.5°

			890

			11650

			22

			4

			double-screw

			2FG-12

			Φ1200

			1200

			5,6,7

			6500

			2620

			14°-10.5°

			300

			2290-3200

			5.5X2

			2.2X2

			2FG-15

			Φ1500

			1500

			2.5,4,6

			8265

			3200

			14°-18.5°

			460

			2240-5360

			7.5X2

			2.2X2

			2FG-20

			Φ2000

			2000

			5.4

			8400

			4296

			14.5°-18.5°

			800

			11880

			15X2

			2.2X2

			2FG-24

			Φ2400

			2400

			3.6,5.4,6.3

			9160

			5040

			14°-18.5°

			1160

			13600

			11X2/15X2

			2.2X2

			2FG-30

			Φ3000

			3000

			3.17

			12500

			6300

			14°-18.5°

			1785

			23300

			22X2

			4X2

Factory Display

Tags:

Ore Grading Machine Particle Size Separator Mineral Spiral Classifier

Ore Particle Size Separator

Mineral Particle Size Separator

Mineral Spiral Classifier

Mineral Classifier Ore Grading Machine Particle Size Separator Spiral Classifier
