Chain Bucket Elevator Robust Vertical Conveying Solution For Abrasive Materials

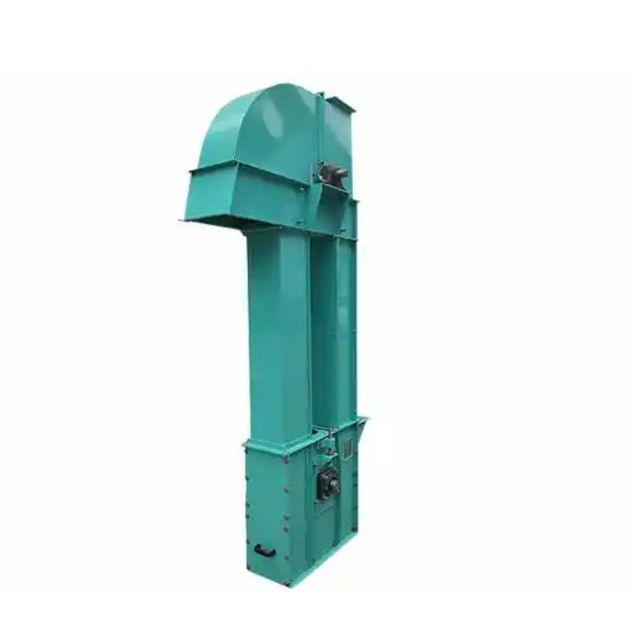

H-Type Chain Bucket Elevator
Robust Vertical Conveying Solution for Abrasive Materials

Product Overview

The H-Type Chain Bucket Elevator is engineered for vertical transportation of highly abrasive powdered, granular, and small-block materials, including grains, coal, cement, and crushed ores. With a maximum lifting height of 40 meters and a material temperature tolerance of up to 250°C, this elevator excels in demanding industrial environments. Its scoop-type loading and gravity/hybrid discharge mechanisms ensure efficient material handling with minimal wear.

Key Features

• Durable Chain Design:

  • Combined Sprocket Rim: Heat-treated, replaceable sprocket components for extended service life.

  • Automatic Tensioning System: Gravity-driven tensioning maintains constant chain pressure, preventing slippage and protecting components during blockages.

• Simple & Stable Operation:

  • Compact structure with smooth operation for reduced vibration and noise.

  • Resistant to material abrasion and high-temperature conditions.

• Adaptable Discharge:

  • Flexible discharge modes (gravity or hybrid) to suit diverse material characteristics.

Technical Specifications

Product Advantages

• Low Maintenance: Modular sprocket design and automatic tensioning reduce downtime.

• High Durability: Reinforced chains and abrasion-resistant components for harsh environments.

• Versatile Application: Ideal for mining, cement plants, grain processing, and chemical industries.

Upgrade to H-Type – Engineered for Tough Materials, Built for Reliability.

Technical Data Table for HL/TH Series Bucket Elevators

Why Choose H-Type & HL/TH Series?

• Precision Engineering: Optimized for abrasive materials and high-temperature applications.

• Custom Configurations: Multiple bucket types (S/Q/SH/ZH) and capacities to match specific needs.

• Proven Performance: Trusted in mining, cement, and agriculture industries worldwide.

Certified Quality, Unmatched Durability – Elevate Your Productivity Today!

Factory display
